Dome

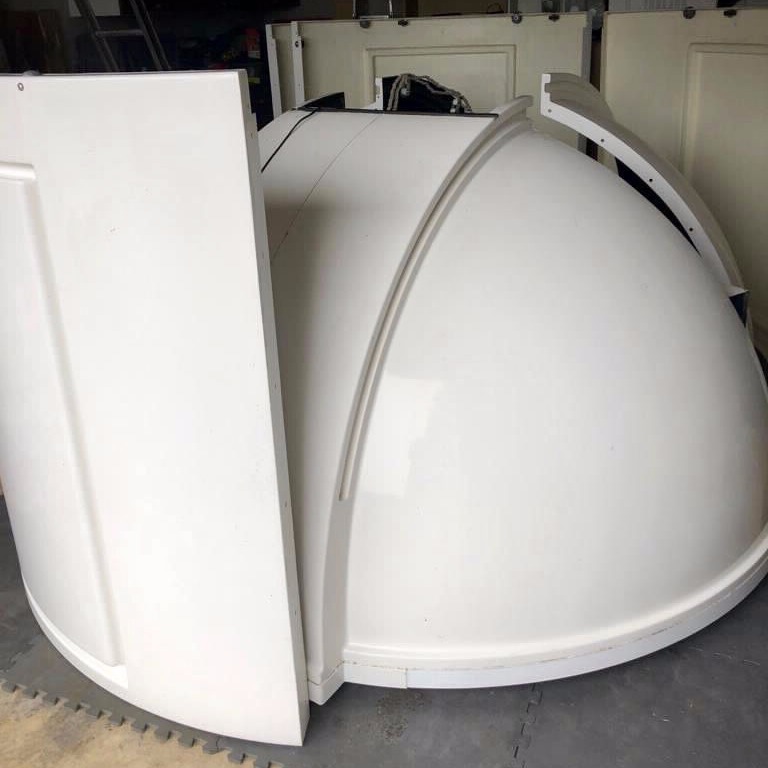

The dome was delivered in sections, allowing it to fit into the back of a van. It is a standard 2.2m Pulsar dome.

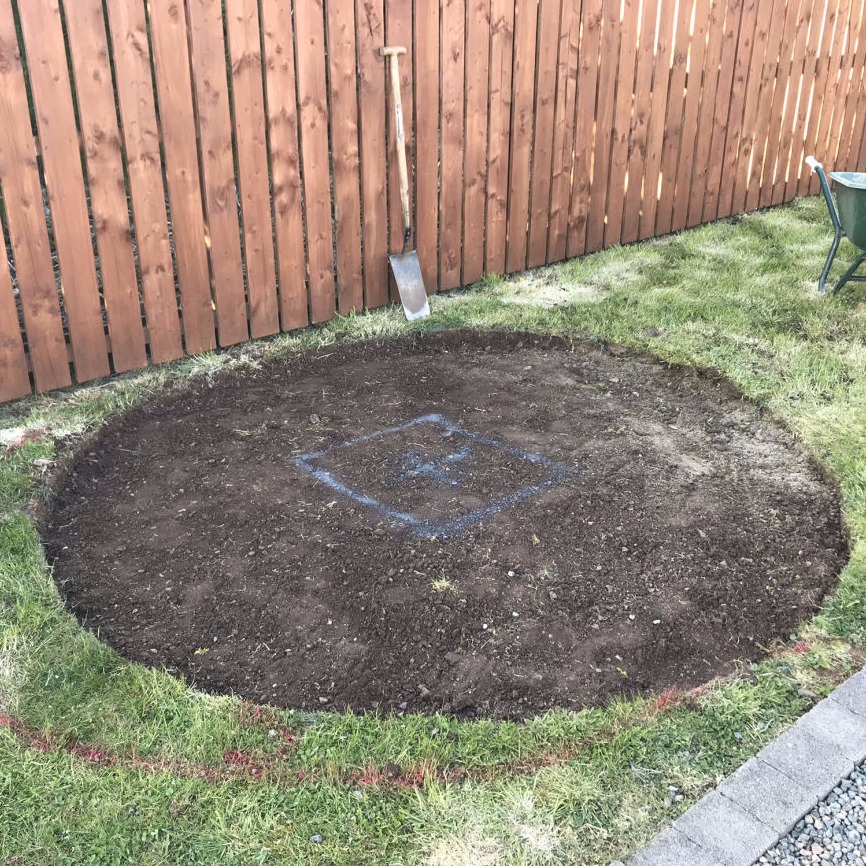

A suitable space was marked and dug out. The base is 2.4m diameter and 6" deep, with a central cube of concrete where the telescope will be mounted

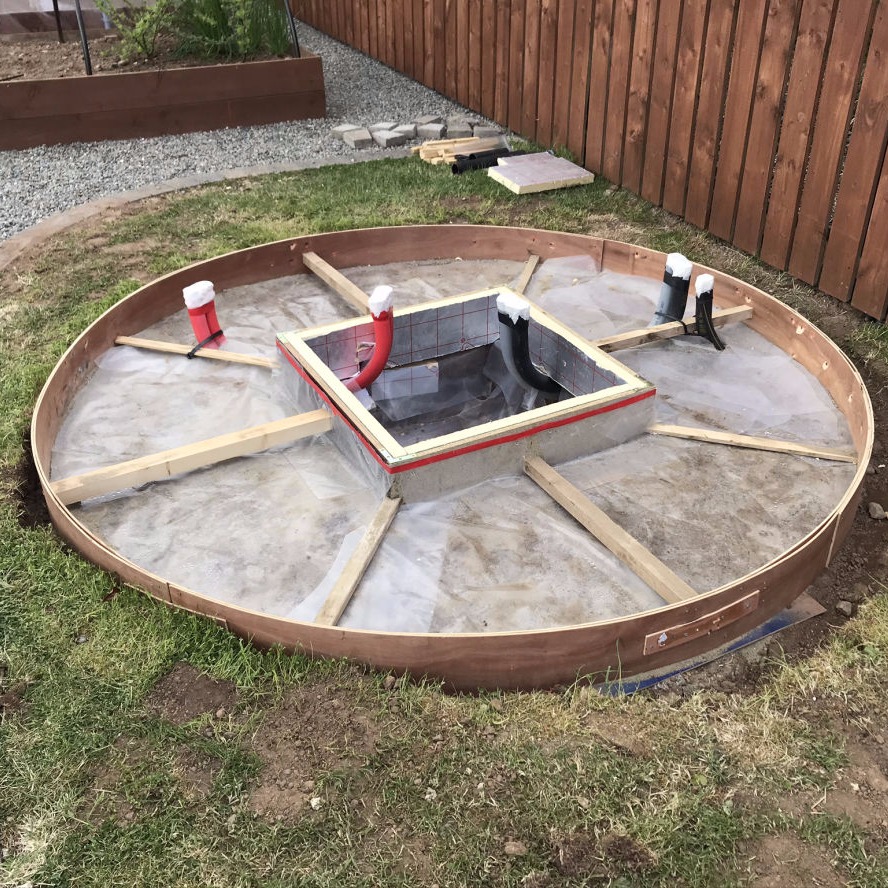

6mm plywood shuttering with a central area isolated from the circular base by insulation. The central area finished at a volume of 75 x 75 x 55cm

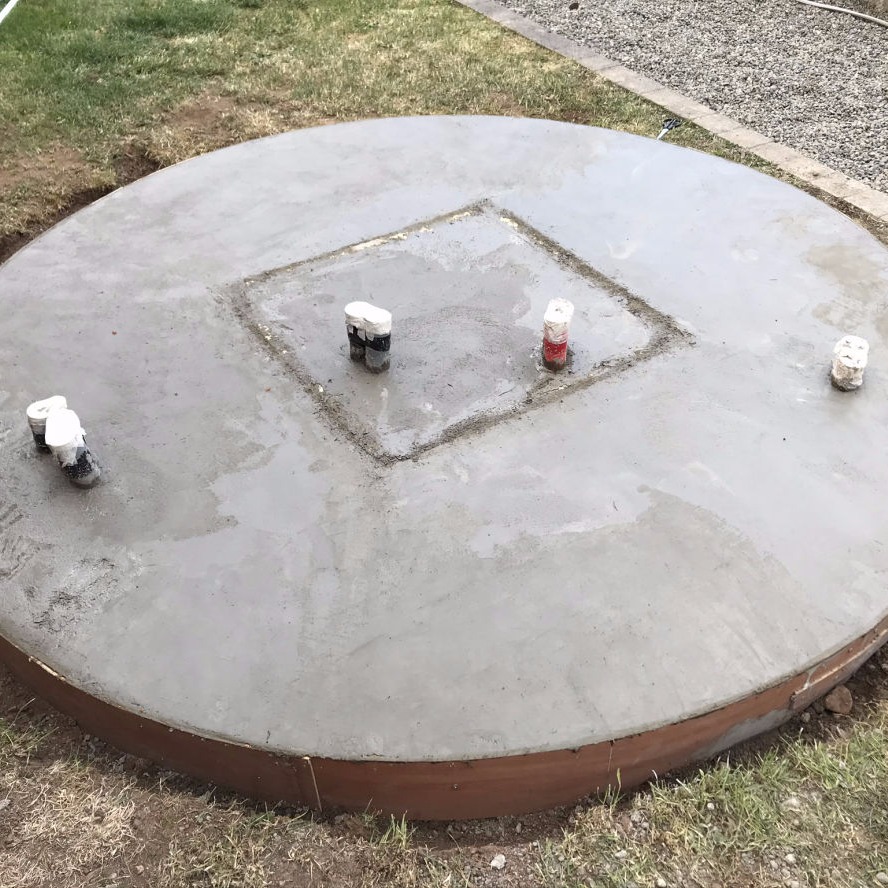

1m3 of concrete used to complete the base and left to harden for two weeks before any further work

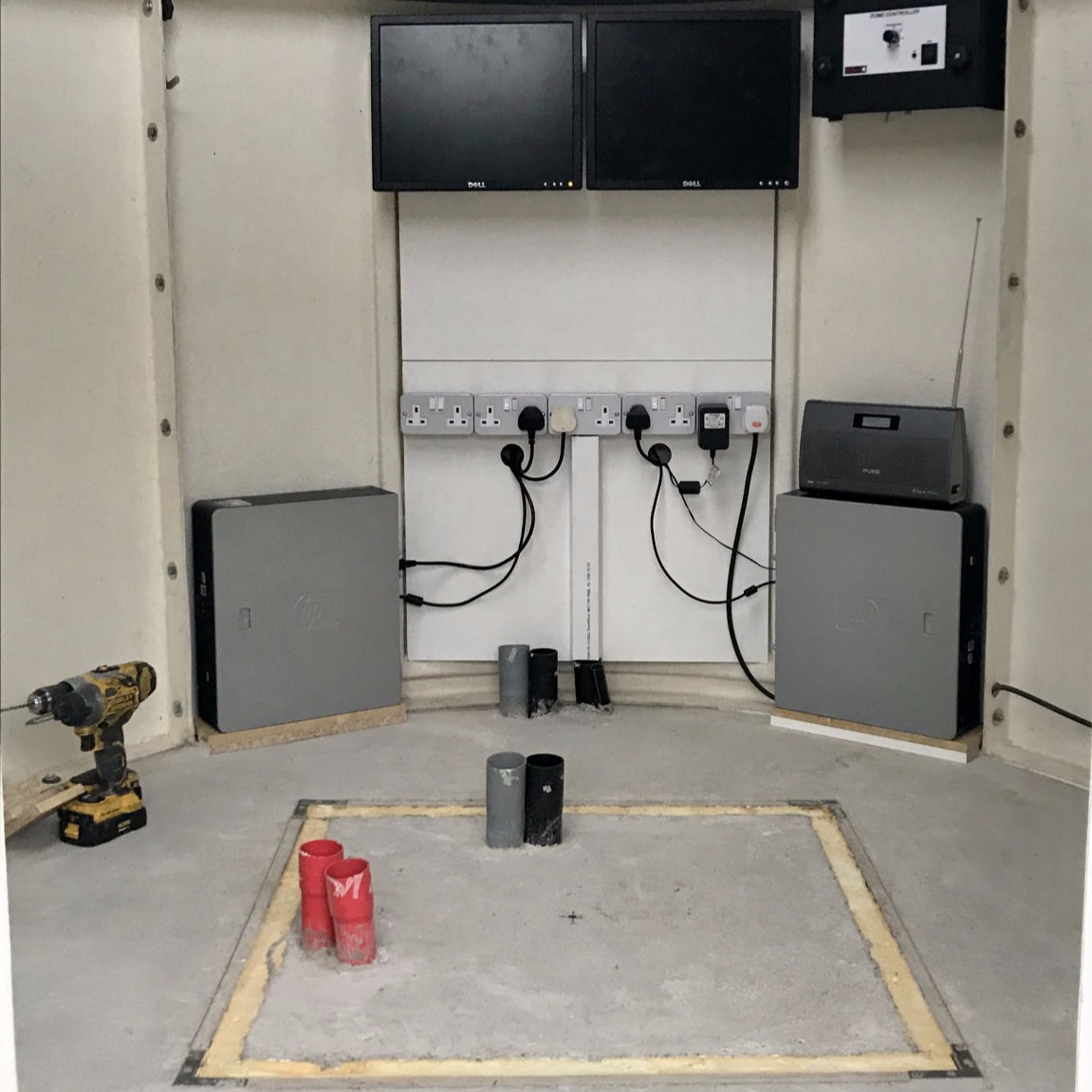

The electrical wiring was connected directly to the main consumer unit via a suitable RCBO device

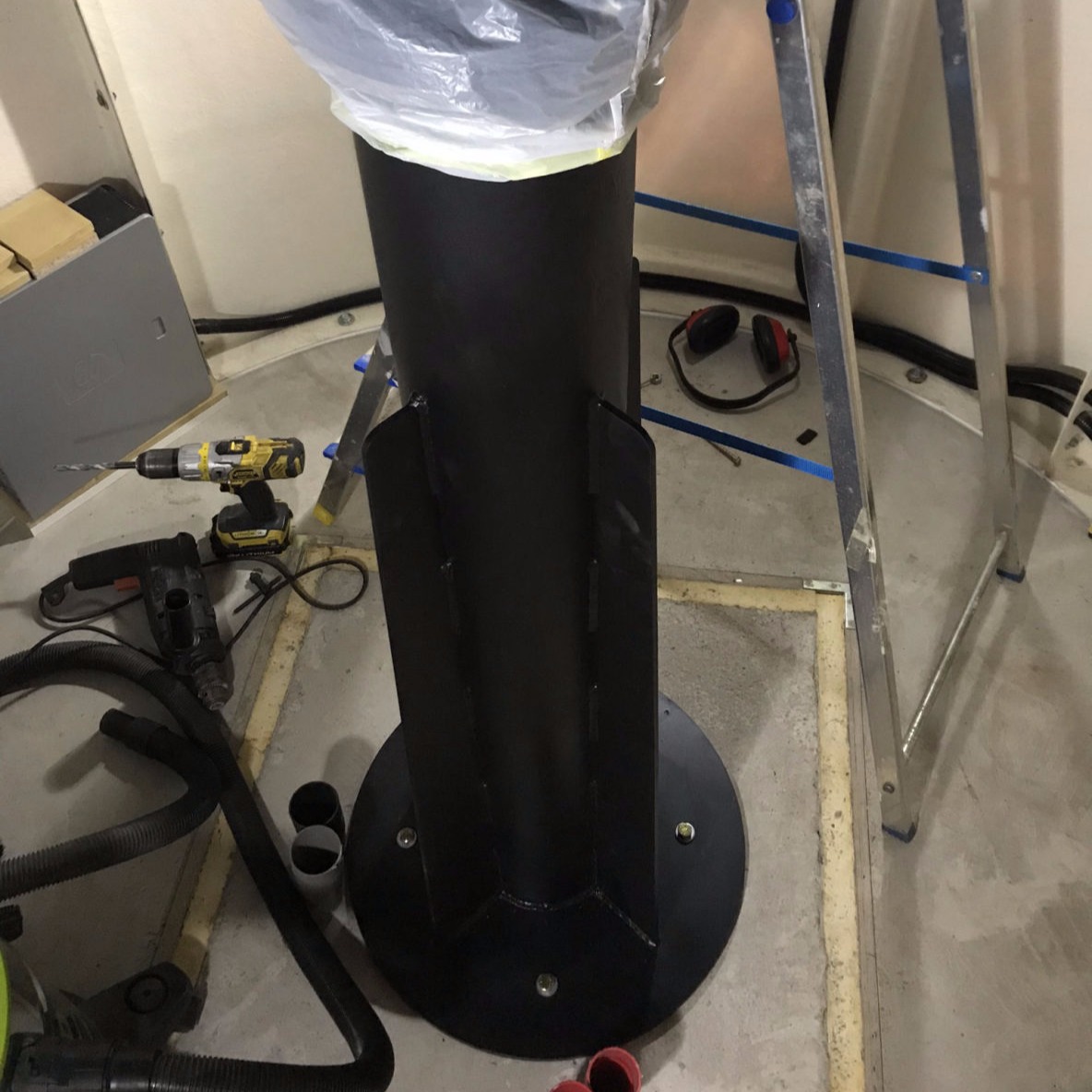

Custom made locally, it has 11mm wall thickness with 10mm base and fins and has opening at base to allow for internal routing of all wiring

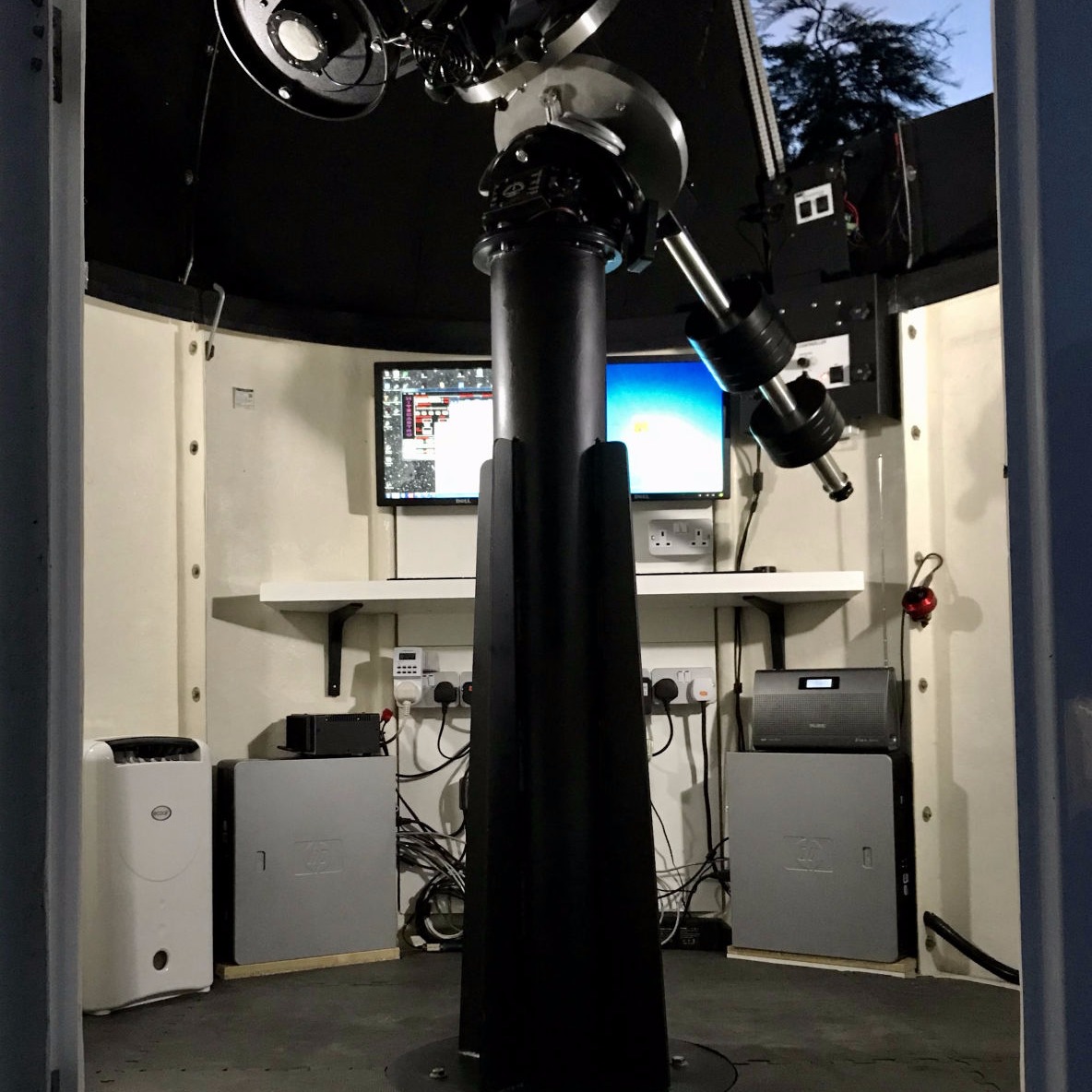

Completed installation of equipment

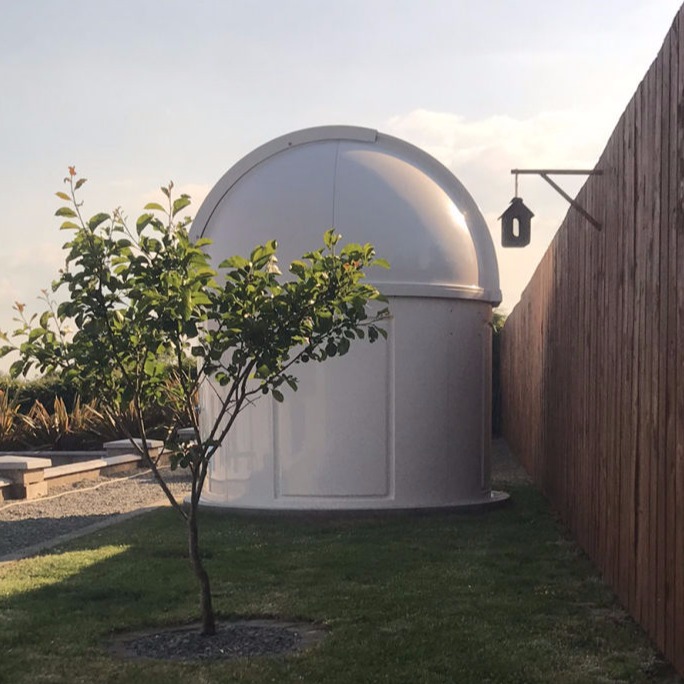

External view of dome

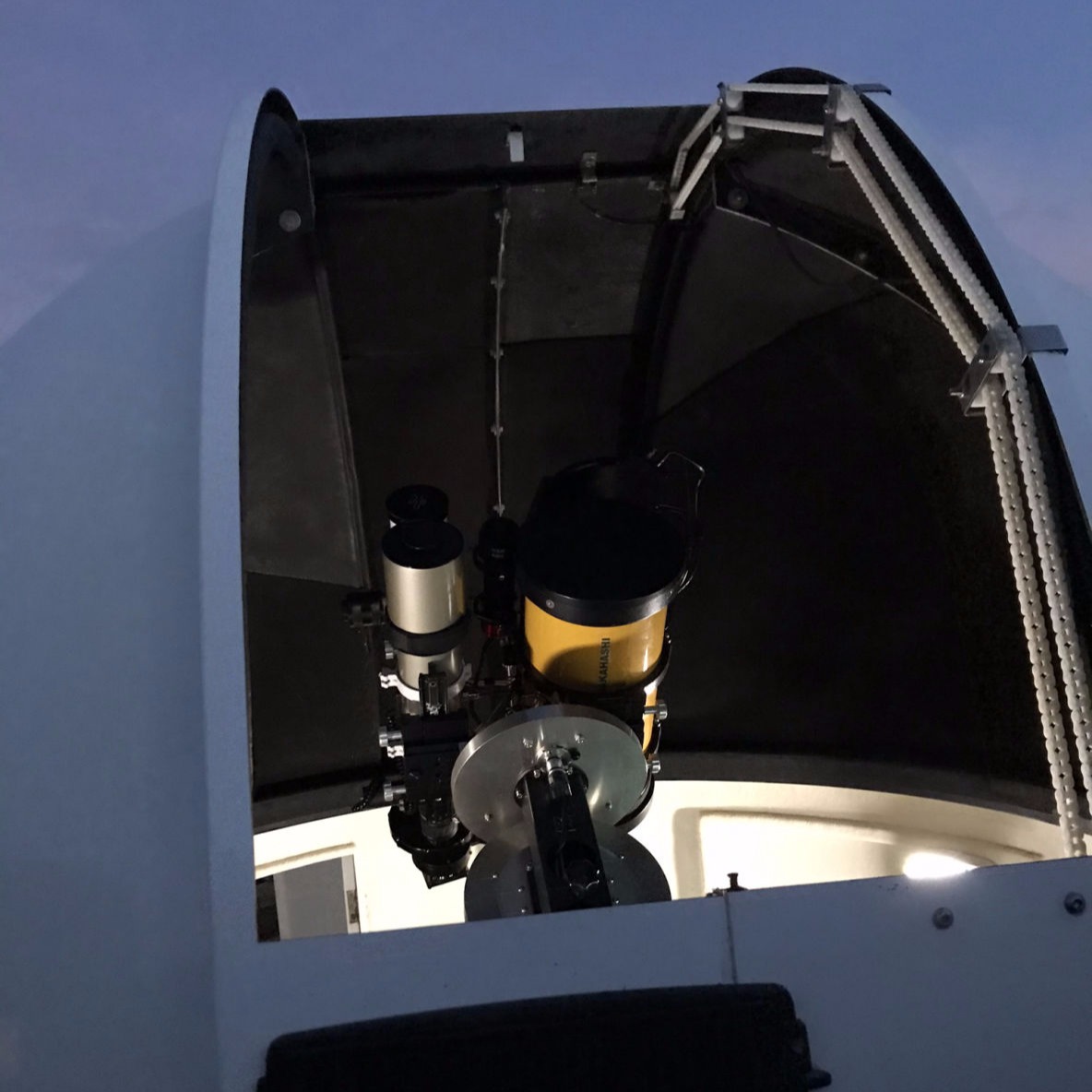

Electronic shutter allowing remote operation
